DITIA electronic siren (VDC - VAC)

The "piezo-ceramic" technology is used on these alarms, thus having an elevated sound level and low absorption.

The siren is equipped with an internal trimmer for regulation of sound intensity.

They are the first equipped with a led light wich signals the alarm activated and have the writing "LIFT ALARM".

They have optimum frequency for propagating sound to a distance and also work at 50% minimum feed voltage, this to have more security in case of extreme use.











DITIA 31











 DITIA 32-35-36

Type Input V - mA

Sound output / db/1m

Sound frequency (Hz) Weight (Kg) Dimens. (cm)
DITIA 31 24VDC 50mA 94 2,7 K 0,05 Ø 6 - H 3
DITIA 32

6 ÷ 12 VDC

35 ÷ 70 mA

102 ÷ 106

2,7 K 0,14 3x7,5x17,5
DITIA 34

6 ÷ 12 VDC

35 ÷ 70 mA

112 ÷ 116 2,7 K 0,15 3x7,5x17,5

DITIA 35

6 ÷ 12VAC

35 ÷ 140mA

102 ÷ 106

2,7K

0,14

3x7,5x17,5
DITIA 36

6 ÷ 12(24) VDC

35 ÷ 70(140) mA

102 ÷ 106(106)

2,7K 0,14 3x7,5x17,5

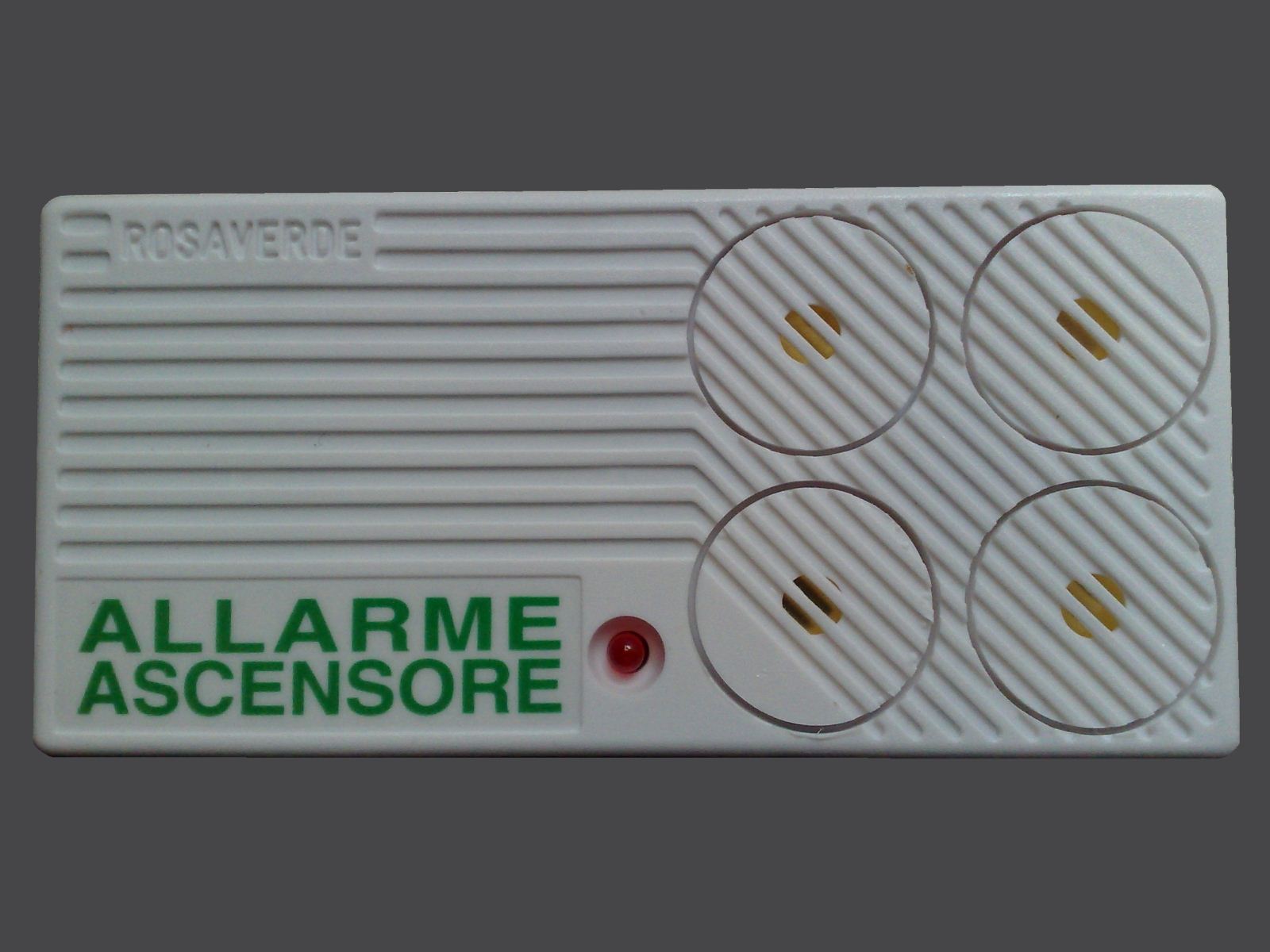

DITIA 34
